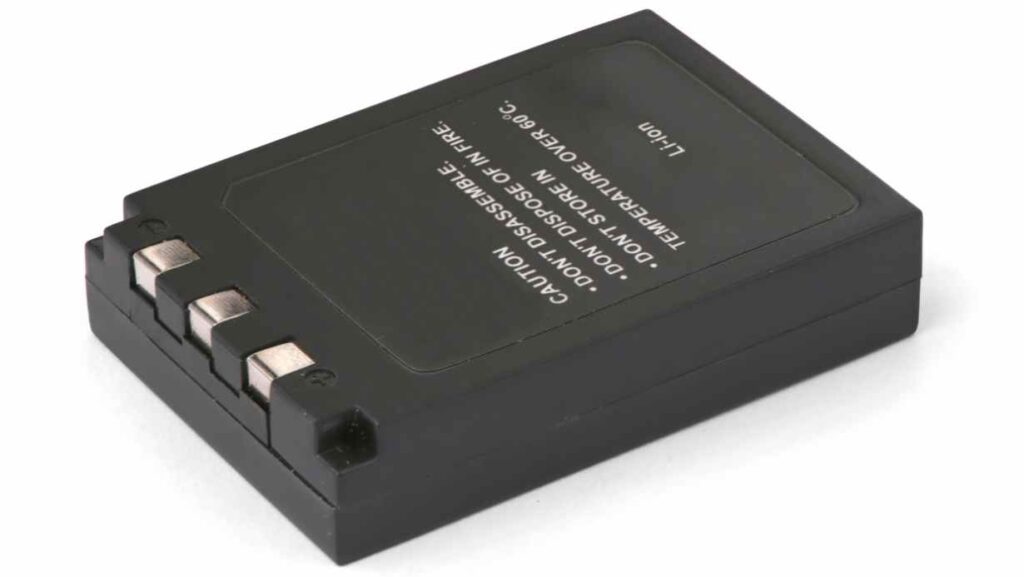

Lithium-ion batteries have revolutionized the way we power our devices, offering high energy density, long cycle life, and fast charging capabilities. From portable electronics to electric vehicles, these batteries have become the preferred choice for various applications. In this article, we will delve deeper into the world of lithium-ion batteries, exploring their history, working principles, chemistry, applications, and future advancements.
A Brief History of Lithium-Ion Batteries
The development of lithium-ion batteries can be traced back to the 1970s when researchers discovered the potential of lithium as an electrode material. However, it was not until the 1990s that Sony Corporation commercialized the first rechargeable lithium-ion battery for consumer electronics. Since then, the technology has continued to advance, resulting in improved performance, safety, and cost-effectiveness.
How Do Lithium-Ion Batteries Work?
Lithium-ion batteries are a type of rechargeable battery that has become widely used in various applications due to their high energy density, long cycle life, and fast charging capabilities. Understanding the working principles of lithium-ion batteries can help us appreciate their functionality and the reasons behind their popularity. Let’s explore how these batteries work.
Components of a Lithium-Ion Batter
A lithium-ion battery consists of several key components:
- Cathode: The cathode is the positive electrode of the battery and typically consists of a lithium transition metal oxide, such as lithium cobalt oxide (LiCoO2), lithium manganese oxide (LiMn2O4), or lithium nickel manganese cobalt oxide (LiNiMnCoO2). The cathode material determines the battery’s voltage and capacity.
- Anode: The anode is the negative electrode and is typically made of graphite. Graphite has a layered structure that allows for the intercalation of lithium ions during charging and discharging.
- Electrolyte: The electrolyte is a conducting medium that facilitates the movement of lithium ions between the cathode and anode. It is usually a lithium salt, such as lithium hexafluorophosphate (LiPF6), dissolved in an organic solvent.
- Separator: The separator is a thin permeable membrane placed between the cathode and anode to prevent direct contact and short circuits while allowing the flow of lithium ions.
- Current Collectors: These conductive plates collect the current from the electrodes and transfer it to the external circuit.
Working Principles of a Lithium-Ion Battery
The operation of a lithium-ion battery involves the following processes:
- Discharging: When a load is connected to the battery, a chemical reaction occurs at the cathode. Lithium ions are extracted from the cathode material, moving through the electrolyte to the anode. Simultaneously, electrons flow through the external circuit, providing the electrical energy required by the connected device.
- Charging: During charging, an external power source applies a voltage higher than the battery’s voltage. This causes a reverse flow of electrons, driving lithium ions from the anode back to the cathode. The lithium ions are stored within the cathode material until the battery is discharged again.
The electrochemical reactions at the cathode and anode are responsible for the movement of lithium ions. At the cathode, the cathode material undergoes a reduction reaction, accepting lithium ions and electrons. For example, in a lithium cobalt oxide cathode, the reaction can be represented as:
LiCoO2 + Li+ + e- ↔ CoO2 + Li
Meanwhile, at the anode, the graphite structure intercalates the lithium ions, releasing electrons. The reaction at the anode can be expressed as:
Li + C6 ↔ LiC6
These reversible reactions allow the battery to be charged and discharged multiple times.
Comparison with Other Battery Technologies
Lithium-ion batteries have several advantages over other types of batteries:
| Lithium-Ion Batteries | Lead-Acid Batteries | Nickel-Cadmium Batteries | |
|---|---|---|---|
| Energy Density | High energy density, providing more power in a smaller and lighter package | Lower energy density compared to lithium-ion batteries | Moderate energy density |
| Cycle Life | Long cycle life, enduring hundreds of charge-discharge cycles | Moderate cycle life | Moderate cycle life |
| Self-Discharge | Low self-discharge rate, retaining charge for longer periods | Moderate self-discharge rate | Higher self-discharge rate |
| Memory Effect | No memory effect, eliminating the need |
The Chemistry Behind Lithium-Ion Batteries
The chemistry behind lithium-ion batteries plays a crucial role in their performance, energy storage capabilities, and overall functionality. Understanding the chemical reactions that occur within these batteries can provide insights into their advantages and limitations. Let’s delve into the key aspects of the chemistry behind lithium-ion batteries.
Electrochemical Reactions
Lithium-ion batteries operate based on reversible electrochemical reactions at the cathode and anode. These reactions involve the intercalation and deintercalation of lithium ions within the electrode materials during charging and discharging cycles.
Cathode Reactions
The cathode of a lithium-ion battery typically consists of a lithium transition metal oxide, such as lithium cobalt oxide (LiCoO2), lithium manganese oxide (LiMn2O4), or lithium nickel manganese cobalt oxide (LiNiMnCoO2).
During discharging, the cathode material undergoes a reduction reaction, accepting lithium ions and electrons from the anode and the external circuit. For example, in a lithium cobalt oxide cathode, the reaction can be represented as:
LiCoO2 + Li+ + e- ↔ CoO2 + Li
This reaction involves the reduction of cobalt from its higher oxidation state (Co4+) to a lower oxidation state (Co3+), accompanied by the intercalation of lithium ions into the crystal lattice of the cathode material.
Anode Reactions
One of the common graphite products is the anode of a lithium-ion battery, which has a layered structure capable of intercalating lithium ions.
During charging, lithium ions are extracted from the cathode and move
through the electrolyte to the anode.
At the anode, the graphite structure intercalates the lithium ions,
releasing electrons. The reaction at the anode can be expressed as:
Li + C6 ↔ LiC6
This reaction involves the insertion of lithium ions into the graphite layers, which expands the structure of the anode material.
Electrolyte and Ion Transport
The electrolyte in a lithium-ion battery serves as a conductive medium for the transport of lithium ions between the cathode and anode. It is typically a lithium salt, such as lithium hexafluorophosphate (LiPF6), dissolved in an organic solvent.
The electrolyte must possess certain properties to ensure efficient ion transport and maintain the stability of the battery. It should have high ionic conductivity to facilitate the movement of lithium ions. Additionally, it should be chemically stable to prevent decomposition or reactions with the electrode materials.
During battery operation, the lithium ions dissolved in the electrolyte move toward the anode or cathode, depending on the charging or discharging process. The movement of these ions is facilitated by the concentration gradient and the voltage applied to the battery.
Safety Considerations
Lithium-ion batteries require careful design and safety measures due to the reactive nature of lithium. If the battery undergoes thermal runaway or experiences overcharging, it can lead to the release of heat, gas generation, and potential cell rupture.
To enhance safety, various measures are implemented, including the use of separators to prevent direct contact between the electrodes, the incorporation of protective circuits to monitor and control the charging process, and the development of advanced electrolytes that are less prone to thermal decomposition.
In recent years, research has also focused on the development of solid-state electrolytes, which can offer improved safety and stability compared to liquid electrolytes. Solid-state batteries use a solid material as the electrolyte, eliminating the need for a flammable organic solvent and reducing the risk of thermal runaway.
Applications of Lithium-Ion Batteries
Lithium-ion batteries have found widespread applications across various industries due to their advantageous characteristics. Here are some notable uses:
| Application | Benefits |
|---|---|
| Consumer Electronics | – High energy density allows for compact devices |
| – Long cycle life for extended usage | |
| – Fast charging capabilities for convenience | |
| Electric Vehicles | – High energy density enables longer driving ranges |
| – Rapid charging infrastructure being developed | |
| – Reduced environmental impact compared to fossil-fuel vehicles | |
| Renewable Energy Storage | – Store excess energy generated from renewable sources |
| – Provide backup power during grid outages | |
| – Facilitate the integration of intermittent renewable sources | |
| Medical Devices | – Reliable power source for critical, life-saving equipment |
| – Long lifespan and stable performance |
The Future of Lithium-Ion Batteries
Lithium-ion battery technology is continuously evolving to address emerging challenges and meet evolving demands. Here are some potential future advancements:
- Increased Energy Density: Researchers are exploring new electrode materials, such as silicon anodes and high-capacity cathodes, to increase the energy density of lithium-ion batteries. This would allow for longer-lasting portable devices and extended ranges for electric vehicles.
- Fast-Charging Improvements: Efforts are underway to develop advanced charging algorithms and materials that can enable even faster charging times. This would greatly reduce the downtime associated with recharging devices.
- Solid-State Batteries: Solid-state batteries, which use a solid electrolyte instead of a liquid electrolyte, offer the potential for enhanced safety, higher energy density, and longer cycle life. Researchers are actively working on overcoming the technical challenges to bring solid-state batteries to commercial viability.
- Environmental Sustainability: The recycling and reuse of lithium-ion batteries are gaining importance to address the growing concerns about resource depletion and waste management. Developing efficient recycling processes and establishing a circular economy for battery production will contribute to reducing environmental impact.
As lithium-ion batteries continue to improve and advance, they will play a vital role in powering our digital world, transforming transportation, and enabling the transition to renewable energy sources. The ongoing research and development efforts in this field promise exciting developments and innovations, paving the way for a future with even more efficient and sustainable energy storage solutions.
Conclusion
Lithium-ion batteries have come a long way since their inception, powering a wide range of devices and applications. Their high energy density, long cycle life, and fast charging capabilities have made them indispensable in our daily lives. As research and development efforts continue, we can expect further advancements in energy density, charging speed, and environmental sustainability. The future of lithium-ion batteries looks promising, as they will play a crucial role in shaping the future of energy storage and powering our digital world.
FAQs
Are lithium-ion batteries safe?
Lithium-ion batteries are generally safe when used correctly. However, mishandling, overcharging, or exposure to extreme conditions can lead to safety risks, such as thermal runaway. Proper care and following manufacturer guidelines are important for safe usage.
Can lithium-ion batteries be recycled?
Yes, lithium-ion batteries can be recycled. Recycling helps recover valuable materials like lithium, cobalt, and nickel, reduces environmental impact, and supports the sustainable use of resources.
Are there any limitations of lithium-ion batteries?
Lithium-ion batteries have some limitations, including limited energy density compared to other potential technologies, sensitivity to high temperatures, and the need for careful handling and charging to ensure optimal performance and safety.
What are the common applications of lithium-ion batteries?
Lithium-ion batteries are widely used in portable electronics like smartphones, laptops, and tablets. They are also utilized in electric vehicles (EVs), energy storage systems, power tools, and various other applications requiring rechargeable power.
